Powertrain Engines
Bus Classic Engines.
Bus Classic.
A reliable powertrain in every situation.
Our EURO III, V and EEV engines, from the 4/6 cylinder in-line models to the V6/V8 engines, are all characterized by their superior function and efficiency. They all ensure a low fuel consumption thanks to BlueTec, a Mercedes-Benz SCR technology which operates in a particularly eco-friendly way.
Our EURO III, V and EEV engines are distinguished by three relevant features which are strength, economy and durability. Therefore our engines in all series are ideal for city buses and touring coaches. They can also be modified in a way so that they are suitable for customer-specific variants for use in different bus applications.
Medium-duty engines
Always a good choice.
Product features.
- 4- and 6-cylinder diesel engines in an in-line arrangement
- Displacement of 4.8 to 7.2 liters
- Output of 130 up to 240 kW
- Low fuel consumption due to innovative SCR technology
- Compact installation space
- Cylinder head with 3-valve technology
- Powerful and dynamic engine brakes due to decompression technology
- Additional power take-off options
- “One box” SCR exhaust aftertreatment
- Wide range of potential adaptations due to extensive modular system

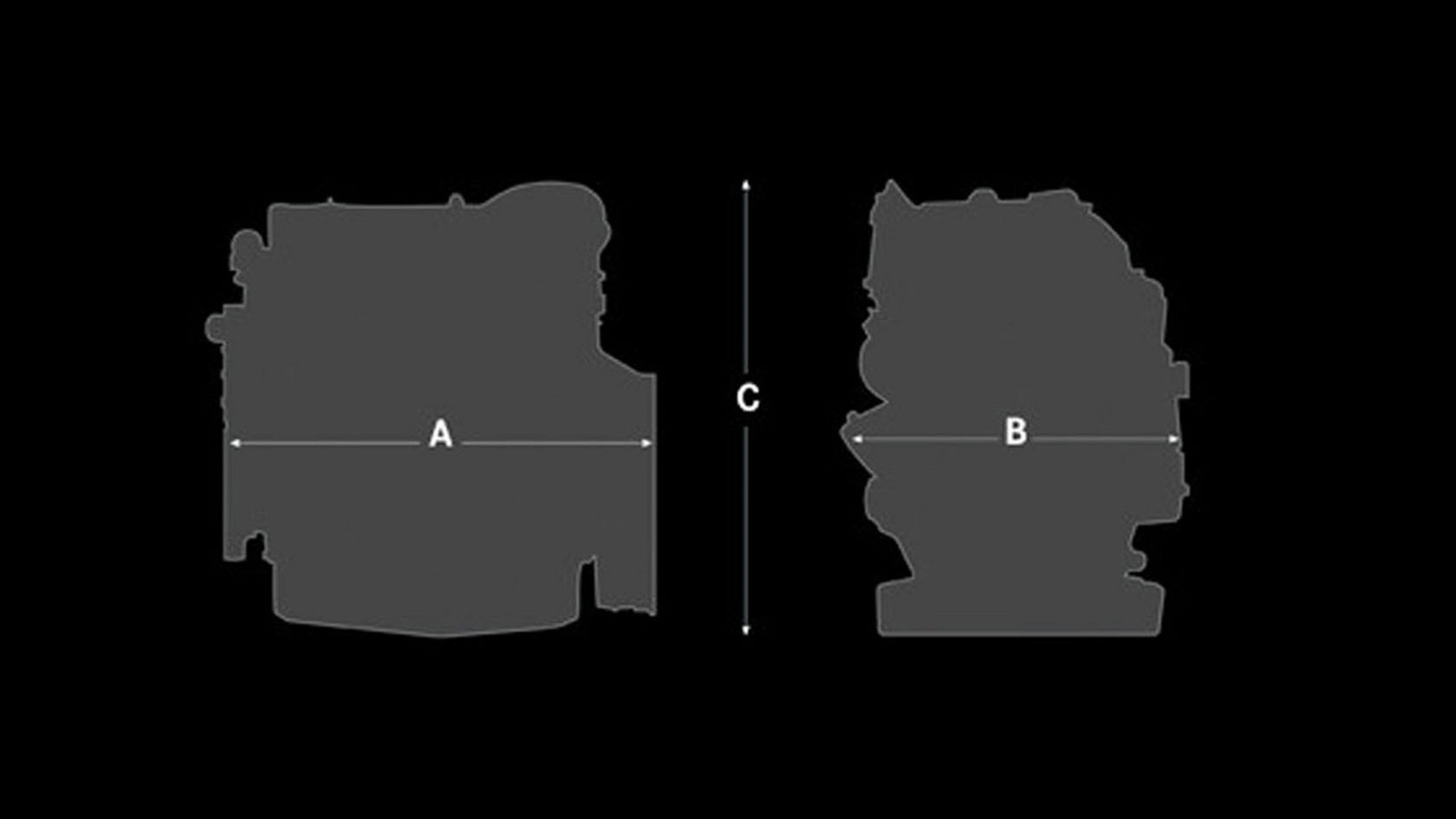

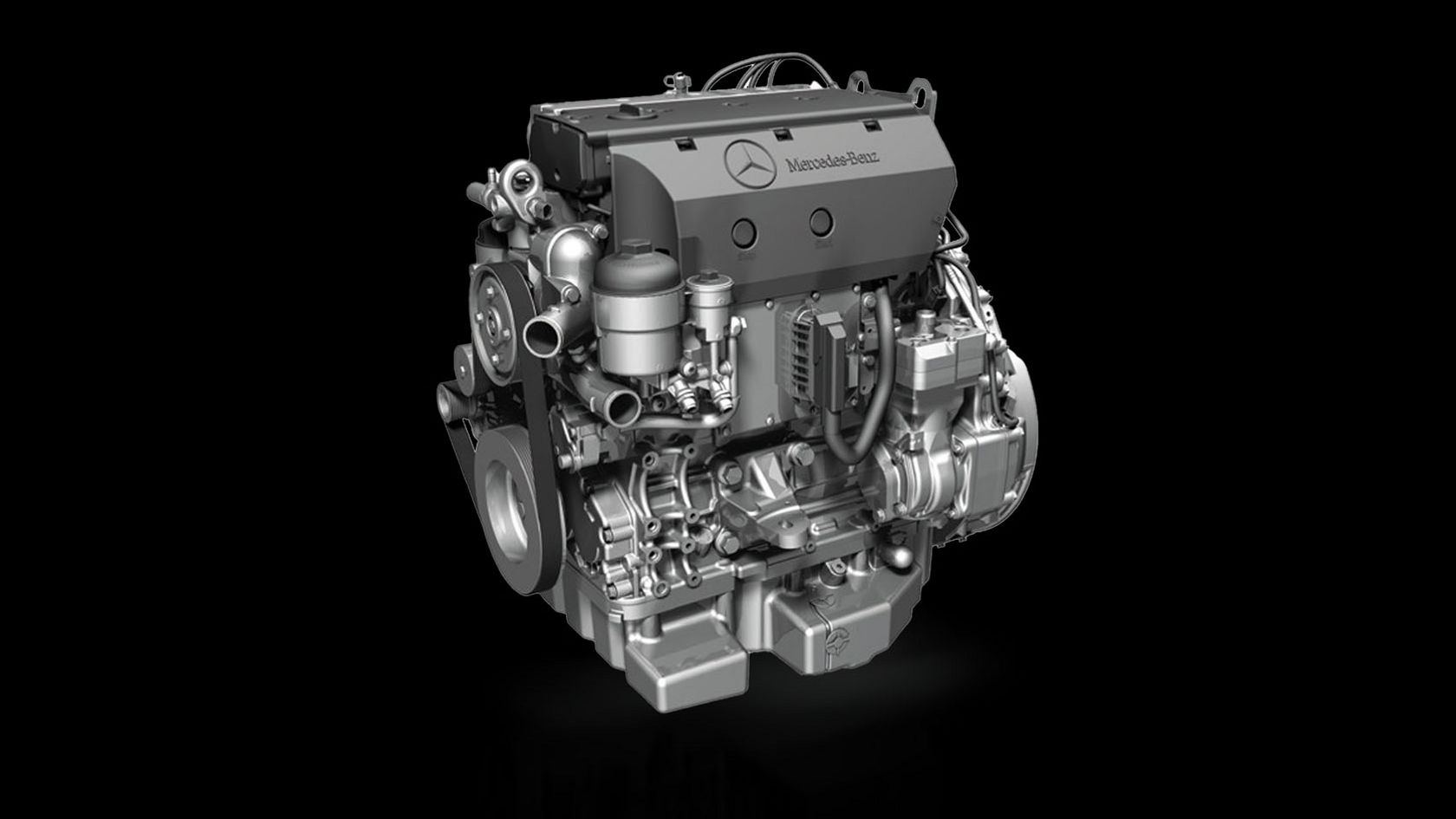

Weight and dimensions*.
Weight
EURO III: 395 kg
EURO V/EEV: 405 kg

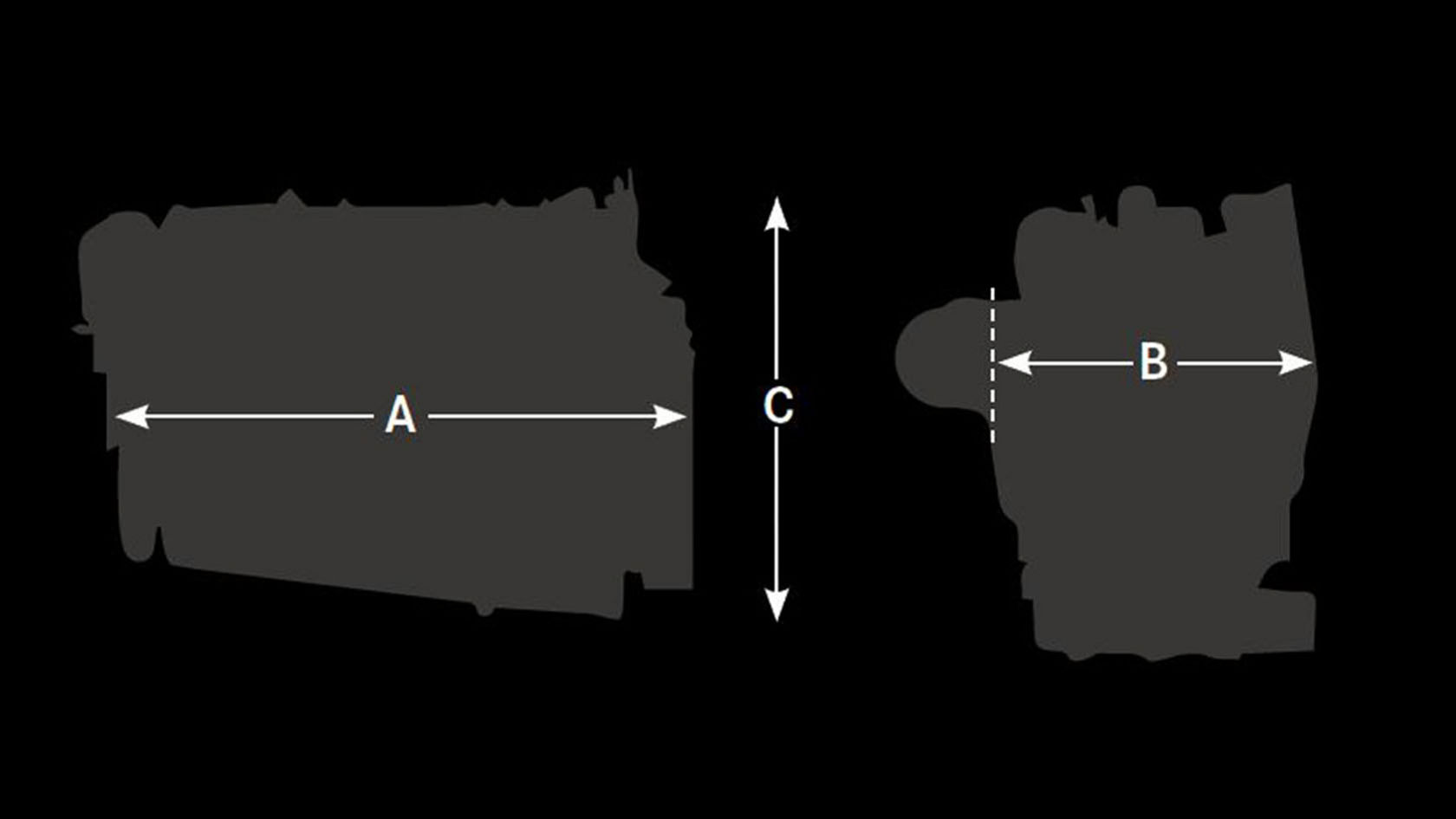

Dimensions
A = length 808 mm
B = width 600 mm (excl. charge air pipe)
C = hight 805 mm

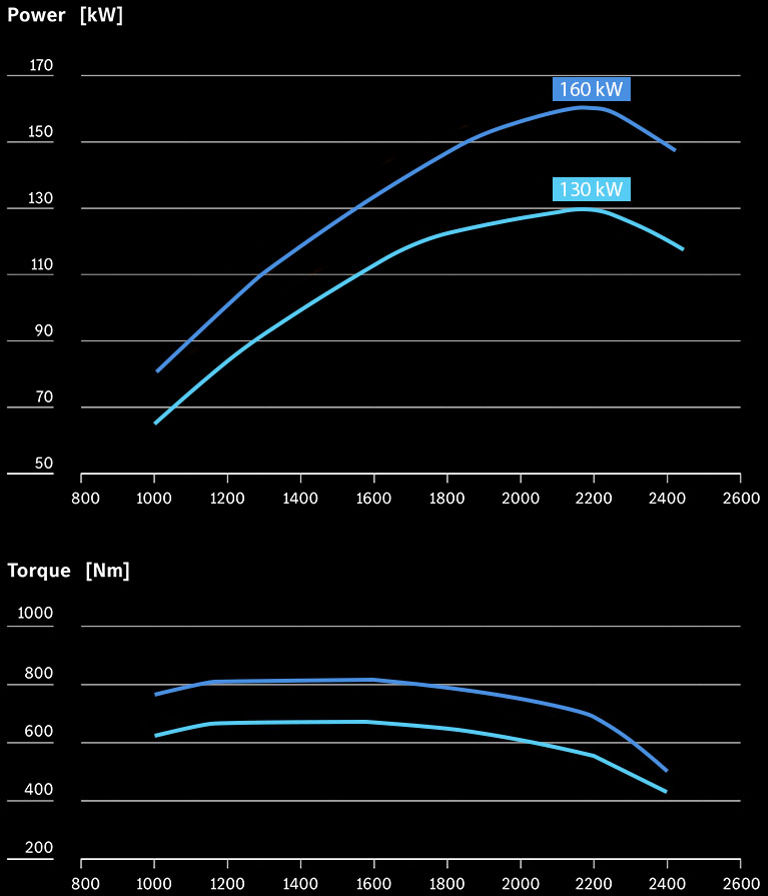

Rated power and nominal torque.
| Rated power [kW/hp] | 160/218 | 130/177 |
| At engine speed [rpm] | 2200 | 2200 |
| Nominal torque [Nm] | 810 | 675 |
| At engine speed [rpm] | 1400-1600 | 1200-1600 |

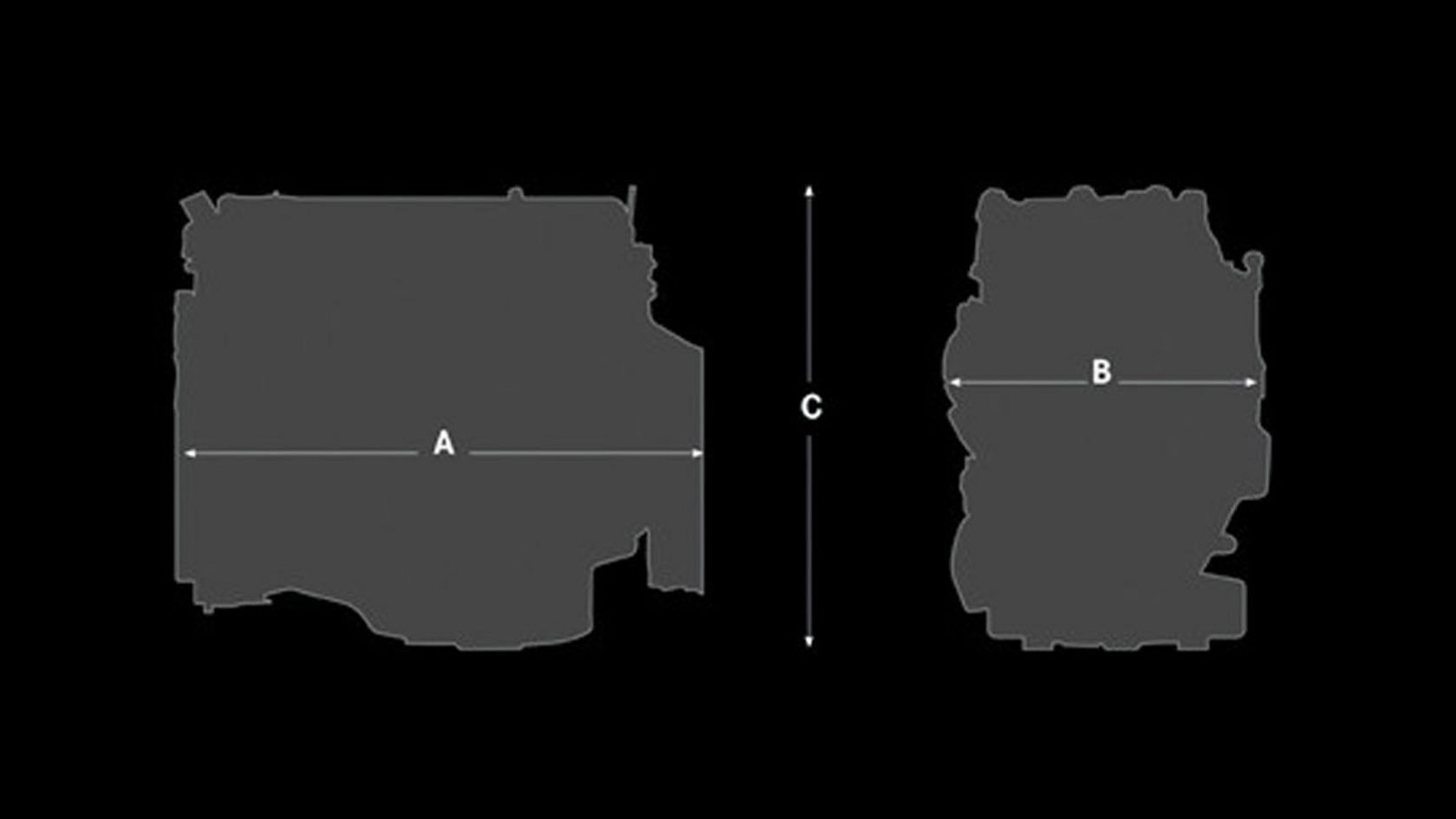

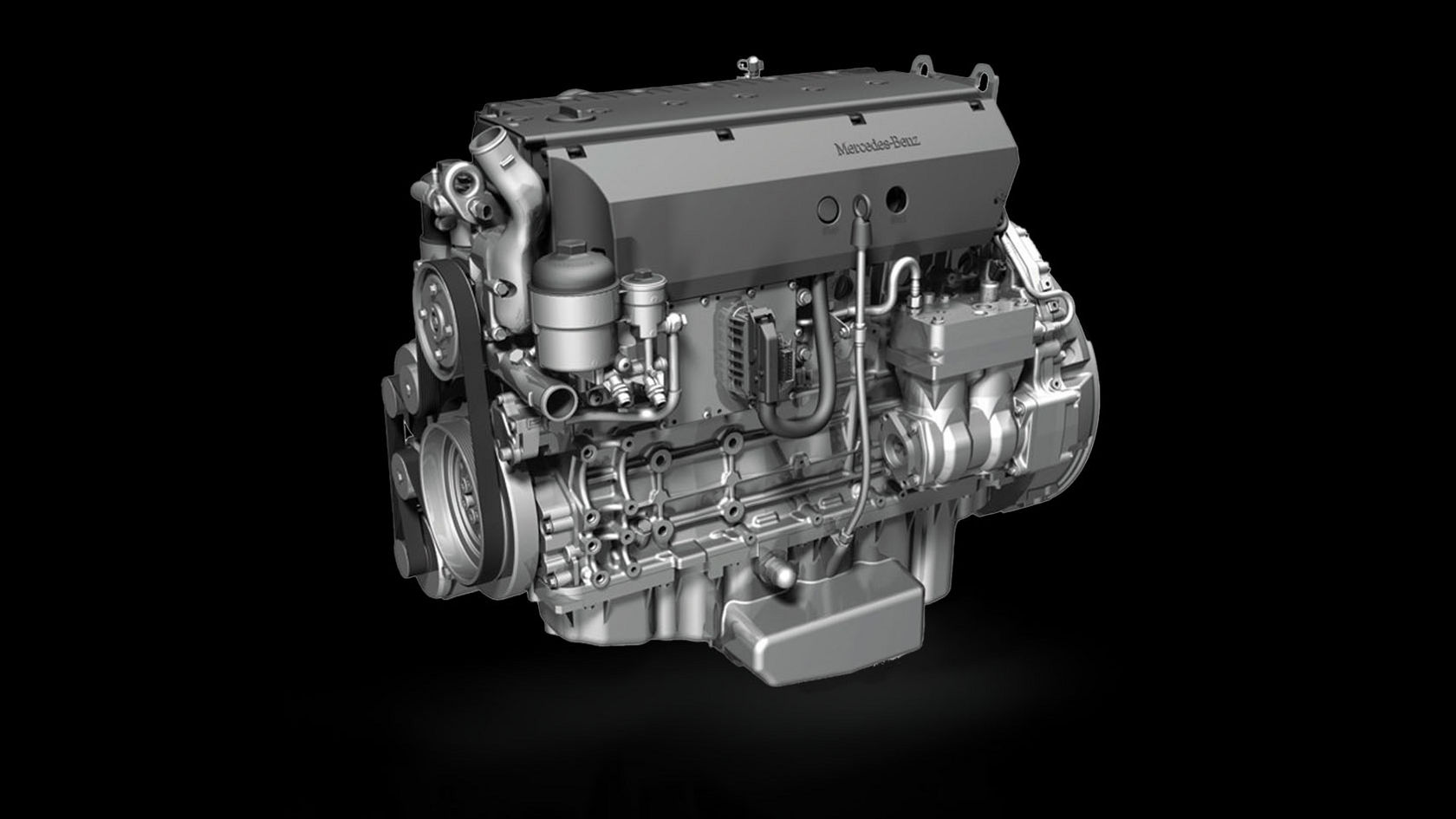

Weight and dimensions*.
Weight
EURO III: 530 kg
EURO V/EEV: 540 kg
Dimensions
A = length 1045 mm
B = width 640 mm (excl. charge air pipe)
C = hight 895 mm

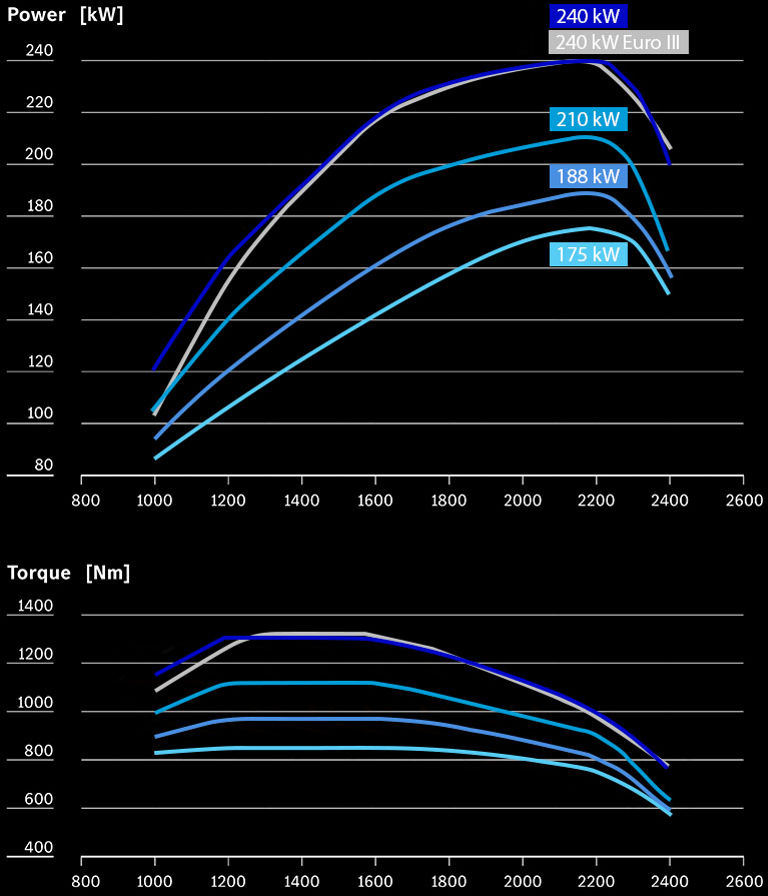

Rated power and nominal torque.
| EURO III | EURO V/EEV | EURO V/EEV | EURO V/EEV | EURO V/EEV | |
| Rated power [kW/hp] | 240/326 | 175/238 | 188/255 | 210/286 | 240/326 |
| At engine speed [rpm] | 2200 | 2200 | 2200 | 2200 | 2200 |
| Nominal torque [Nm] | 1300 | 850 | 970 | 1120 | 1300 |
| At engine speed [rpm] | 1200-1600 | 1200-1600 | 1200-1600 | 1200-1600 | 1200-1600 |

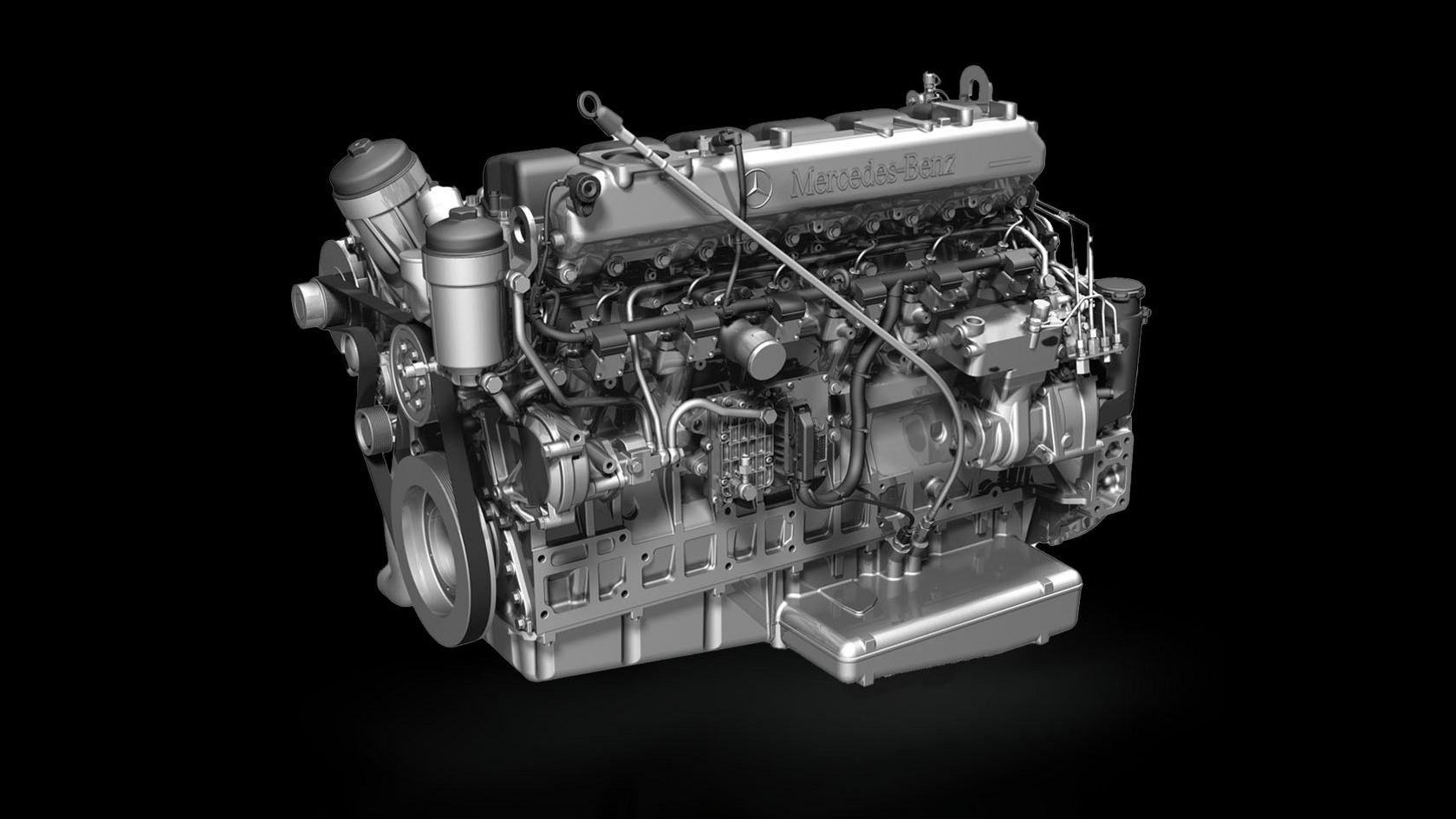

Heavy-duty engines
Climb every mountain.
Product features.
- 6-cylinder diesel engines in-line
- Displacement of 12 liters
- Output of 260 up to 315 kW
- Low fuel consumption due to proven SCR technology
- Compact installation space
- Cylinder head with 4-valve technology
- Powerful and dynamic engine brakes due to decompression technology
- Additional power take-off options
- “One box” SCR exhaust after-treatment
- Wide range of potential adaptations due to extensive modular system
Weight and dimensions*.
Weight
EURO III: 1005 kg
EURO V: 1015 kg
Dimensions
A = length 1267 mm
B = width 750 mm (excl. charge air pipe)
C = hight 945 mm

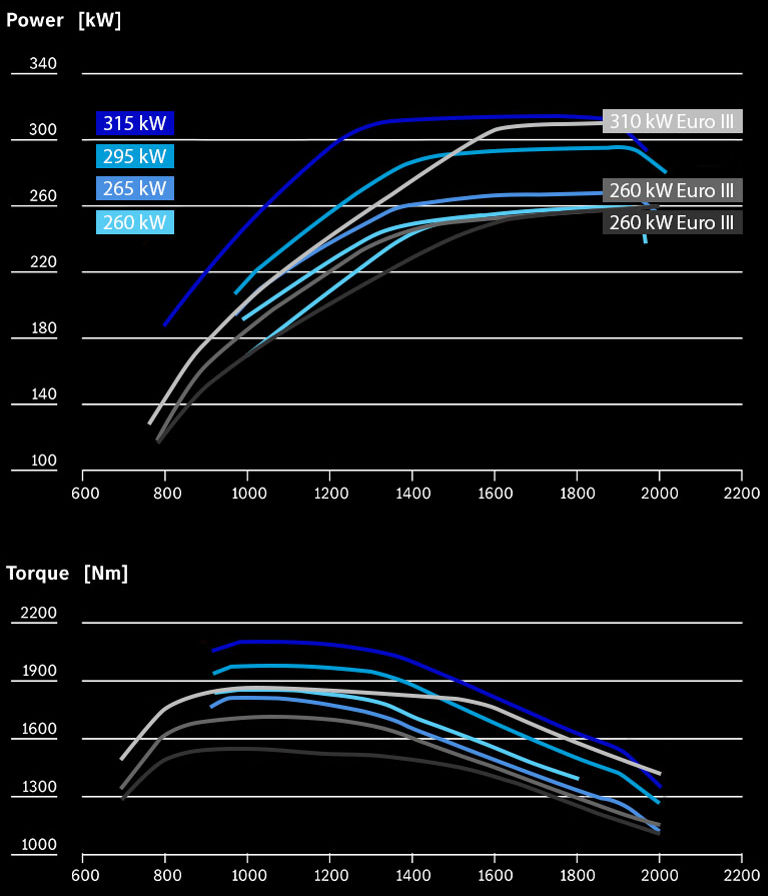

Rated power and nominal torque.
| EURO III | EURO III | EURO III | |
| Rated power [kW/hp] | 260/348 | 260/348 | 310/422 |
| At engine speed [rpm] | 2000 | 2000 | 2000 |
| Nominal torque [Nm] | 1600 | 1750 | 1900 |
| At engine speed [rpm] | 1100 | 1100 | 1100 |
| EURO V/EEV | EURO V/EEV | EURO V/EEV | EURO V/EEV | EURO V/EEV | |
| Rated power [kW/hp] | 260/354 | 265/360 | 295/401 | 315/428 | 335/456 |
| At engine speed [rpm] | 2000 | 1900 | 1900 | 1900/2000 | 2000 |
| Nominal torque [Nm] | 1600/ 1850 | 1850 | 2000 | 2100 | 2200 |
| At engine speed [rpm] | 1100 | 1100 | 1100 | 1100 | 1100 |
* depending on equipment installed
