动力总成-发动机
卡车欧六发动机系统.
卓越的设计和效率。-
汇聚最新的发动机创新技术.
发动机的设计严格注重环保、效率和性能。为客户带来的益处包括低油耗、长发动机寿命和长保养周期。新款发动机具有自发响应、卓越的动力输出和最平稳的运行特性。

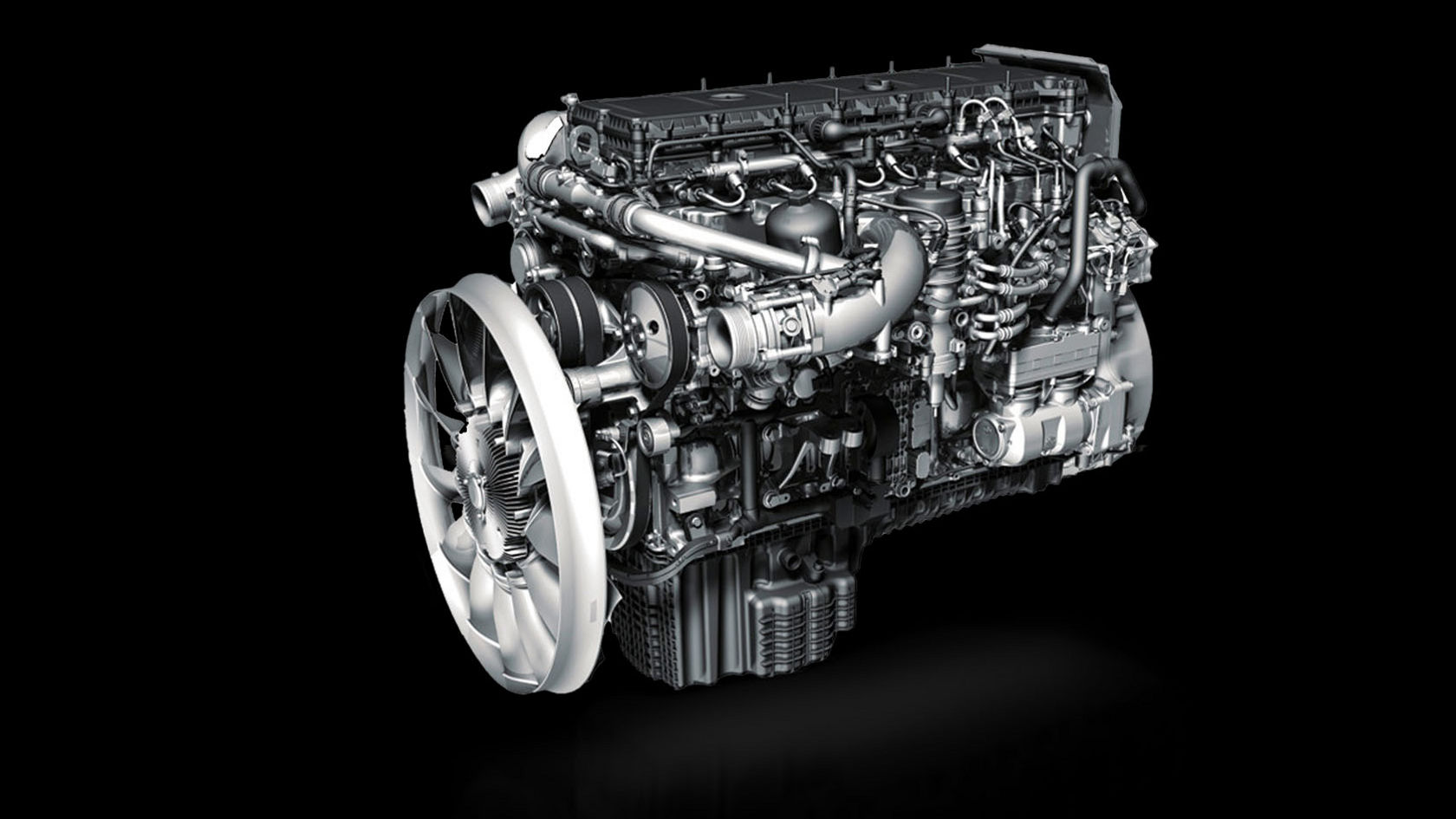

重型发动机.
时刻保持百分百强劲动力.
产品特征
- 直列6缸柴油发动机，采用冷却废气再循环
- 排量为10.7至15.6升
- 输出功率为240 kW至460 kW
- 专用燃烧系统，最大限度地降低油耗
- 新一代发动机兼具高性能和低油耗的特性
- 喷油压力高达2700巴的高压共轨喷射系统
- 具有不对称涡轮几何结构的单级涡轮增压器
- 15.6升发动机，配备复合式涡轮
- 适应未来发展的气门正时齿轮，配备双顶置凸轮轴和4气门技术
- 强劲的动态发动机制动，制动功率高达480 kW
- 多元化的取力器选装件
- “一箱式”选择性催化还原（SCR）和柴油颗粒捕集器（DPF）的尾气后处理技术
Arrangement: L6 | Displacement: 10.7 l
Weight and dimensions.
Weight
DIN 70020 - GZ: 956 kg
Dimensions
A = lenght: 1469 mm
B = width: 1115 mm
C = height: 1190 mm
Rated power and maximal torque.
| Rated power [kW/hp] | 240/326 | 265/360 | 290/394 | 315/428 | 335/456 |
| At engine speed [rpm] | 1600 | 1600 | 1600 | 1600 | 1600 |
| Maximal torque [Nm] | 1700 | 1800 | 1900 | 2100 | 2200* |
| At engine speed [rpm] | 1100 | 1100 | 1100 | 1100 | 1100 |
Arrangement: L6 | Displacement: 12.8 l
Weight and dimensions.
Weight
DIN 70020 - GZ: 1091 kg
Dimensions
A = lenght: 1544 mm
B = width: 1115 mm
C = height: 1190 mm
Rated power and maximal torque.
| Rated power [kW/hp] | 310/422 | 330/449 | 350/476 | 375/510 | 390/530 |
| At engine speed [rpm] | 1600 | 1600 | 1600 | 1600 | 1600 |
| Maximal torque [Nm] | 2100 | 2200 | 2300 | 2500 | 2600 |
| At engine speed [rpm] | 1100 | 1100 | 1100 | 1100 | 1100 |
Arrangement: L6 | Displacement: 15.6 l
Weight and dimensions.
Weight
DIN 70020 - GZ: 1240 kg
Dimensions
A = Länge: 1595 mm
B = Breite: 1120 mm
C = Höhe: 1210 mm
Rated power and maximal torque.
| Rated power [kW/hp] | 380/517 | 425/578 | 460/626 |
| At engine speed [rpm] | 1600 | 1600 | 1600 |
| Maximal torque [Nm] | 2600 | 2800 | 3000 |
| At engine speed [rpm] | 1100 | 1100 | 1100 |
